Product Introduction

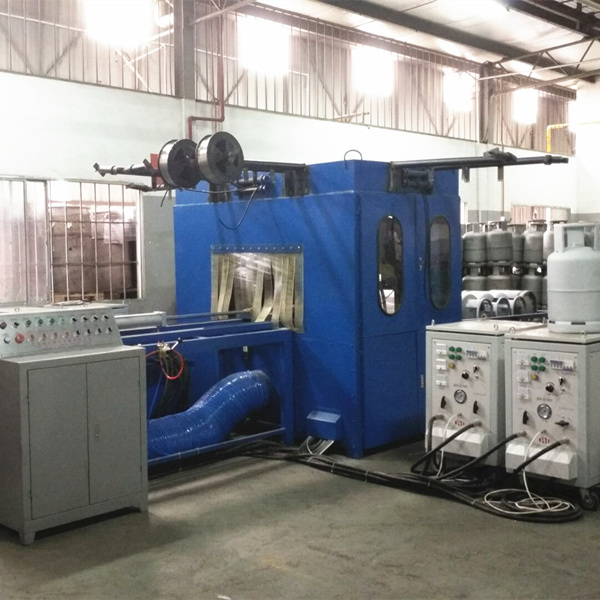

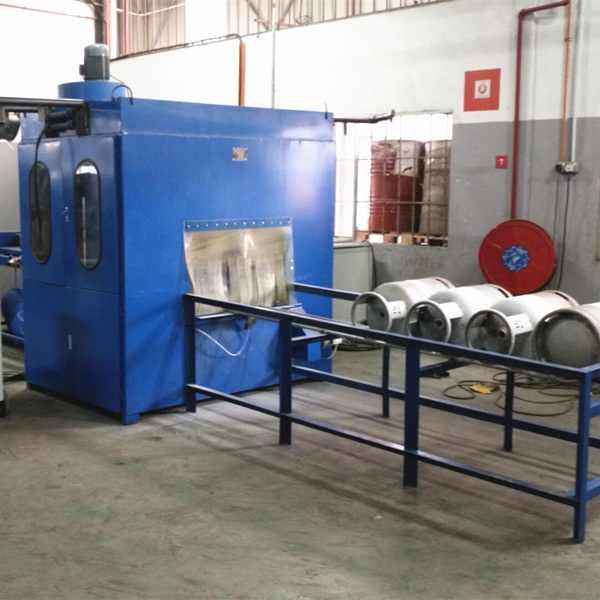

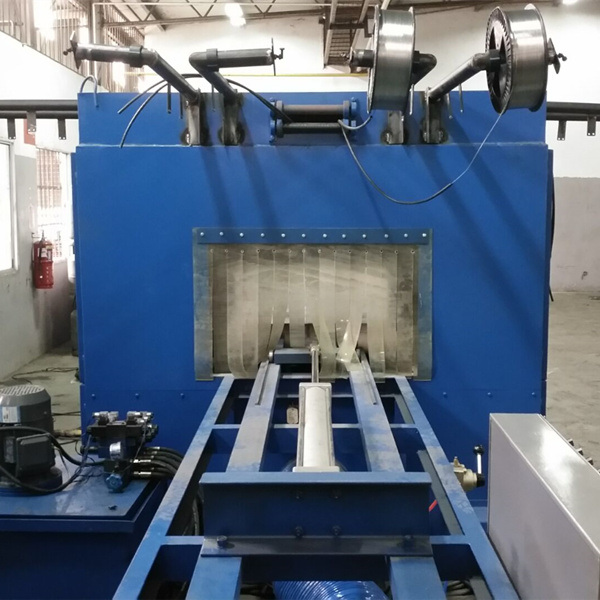

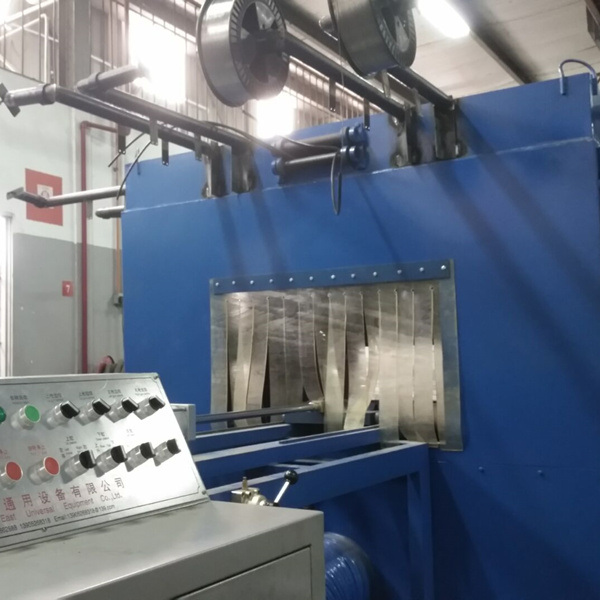

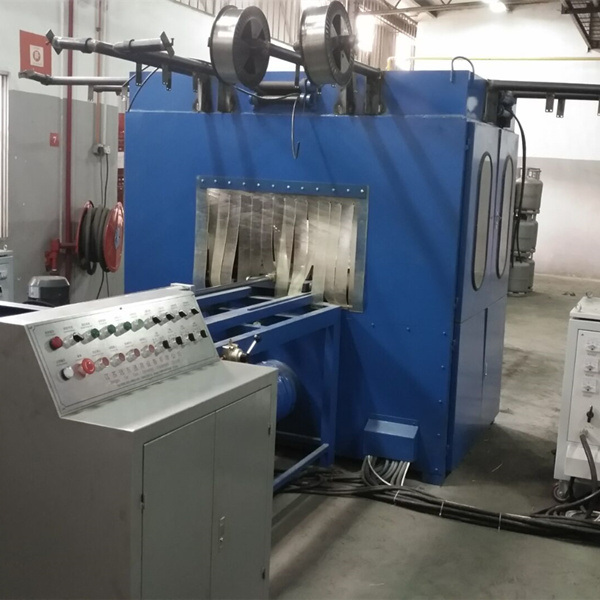

Zinc metalizing line consists of arc spraying zinc machine, spray gun automatic mechanism, automatic transmission and the workpiece rotation speed change mechanism, spraying room, vacuum cleaners, electrical control parts. It is especially used for LPG cylinders’ surface. With arc as the heat source, using the high speed gas atomize the melting zinc wire, then high speed spraying to coating the surface of the cylinder. This line combined four arc spraying zinc machines, using four or a plurality spray gun at the same time from different sides of the cylinders.
| Arc spraying zinc machine total power |
15KVA*N |
| Vacuum cleaner engine power |
5.5KW |
| The compressed air input pressure |
0.55~7Mpa |
| Diameter of the zinc wire |
2-3mm |
| Rated input voltage |
220V~280V |
| Productivity |
Max. 90 pcs/hour2-3mm |
| Full load power of zinc metalizing line |
50KW |
| Consumption of 0.5-0.7Mpa compressed air |
8m³/min |
Main technical parameters
1.Arc spraying zinc machine total power: 15KVA*N
2.Vacuum cleaner engine power: 5.5KW
3.The compressed air input pressure: 0.55~7Mpa
4.Diameter of the zinc wire: 2-3mm
5.Rated input voltage: 220V~280V
6.Productivity: Max. 90 pcs/hour
7.Zinc wire consumption: 93 kgs/hour
8.Full load power of zinc metalizing line: 50KW
9.Consumption of 0.5-0.7Mpa compressed air : 8m³/min
Main structure and function
1.Oven(1 room)
2.Arc spraying zinc machine(4 sets)
3.Hydraulic pressure station(1 set)
4.Vacuum cleaner and fan(1 set)
5.Spraying gun clamp
6.Oil cylinder
FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12&13kg,15kgs and 35,45kg LPG cylinder for cooking and other size according customers’ requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machineries:
1.Technical Drawing of the cylinders you want to make?
2.What size of cylinder you want to produce?
3.Are you new in this area or you already have some machines in the workshop?
4.Capacity you require, i.e. how many pieces and sizes you want to make per day?
