Fully Automatic Resistance Seam Welding Machine for Steel Barrels

Short Description:

Diameter Range: 560/571mm

Material Thickness: 0.7-1.2mm

Length Range: 900-1025mm

Working Efficiency: 360-420PCS Per Hour

Send email to us

Product Detail

Product Tags

We are leading supplier of complete turkney solution for 55 gallon (US) & 44 gallon (UK) steel drum production line manufacturing equipments. We are improving technologies all the time and developing drum machinery market. We provide customers with valued solutions including automatic pre-curling &gluing machine,automatic hole punching &locking machine, flangers & curlers machine,W-Beader& corrugator machine, automatic sheet rolling, resistance longitudinal seam welding,assembly &sealing machine,drum painting spray booth,drying oven,silk printing machine etc.. In order to meet the needs of different customers, we have a variety of oil drum welding machine with different efficiency and price for customers to choose.

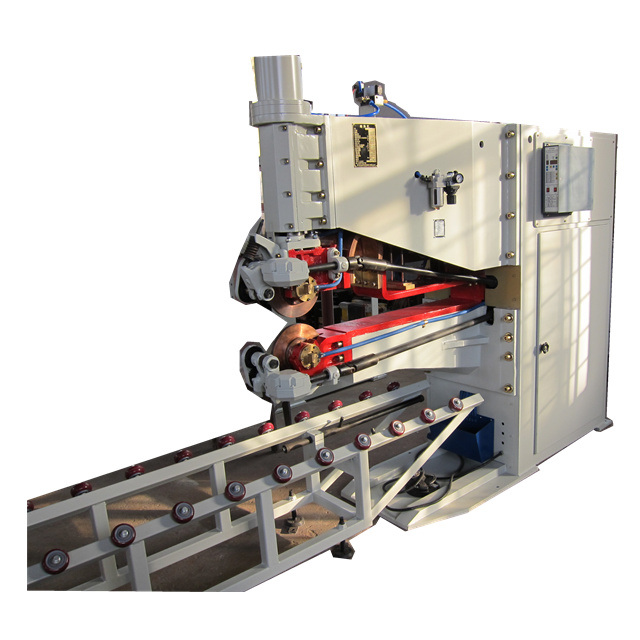

Option 1: Seam welding machine

Introduction

Resistance seam welding machine is the key equipment in drum production, according to the demand of the drum industry, FN1-200-5 has been developed. This spot-welder free resistance drum seam welding machine includes two different options, the micro-computer controller model and the three-phase variable frequency controller model. This machine has a few advantages: less investment and easy to maintain.

Main parameter description	Measure unit	Value
Rated power	KVA	200
Rated Input voltage	V	380
Rated current	A	526
Frequency	Hz	50
Continuous Power	KVA	140
Continuous Current	A	370
Load Cycle	%	50
Subprime no-load voltage	V	6.8~7.6
Secondary voltage regulating series		2
Adjustable welding speed	m/min	0.5~8
Rated welding thickness of weldment	mm	1.5+1.5
Overlap Width	mm	3.5~4
Extension elongation of electrode arm	mm	1100
Adjustable top electrode strode	mm	135
Maximum working pressure	N	6000
Air pressure	MPa	0.5
Cooling water consumption	L/h	1300
Motor power	KW	1.5
Weight of welder	kg	2700
External dimension (length × width × height)	mm	440014002200

Option 2: Spot Welding+ Seam Welding Machine

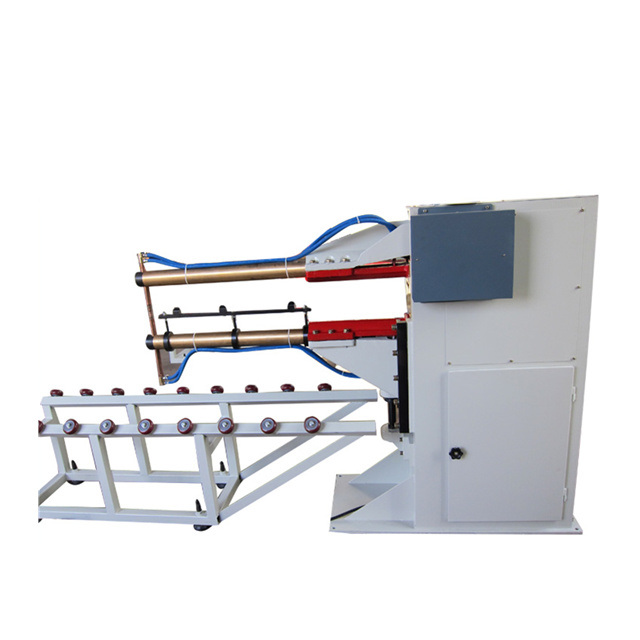

1. Spot Welding Machine

Description	Unit	Data
Rated capacity	KVA	35
Rated voltage	V	380
Rated current	A	92
Frequency	HZ	50
Continuous capacity	KVA	25
Continuous current	A	65
Duty cycle	%	50
Secondary floating voltage	V	6
Secondary voltage regulation		no
Welding speed	m/min
Thickness of maximum weldment	mm	3+3
Rated welding thickness of weldment	mm	2+2
Extension elongation of electrode arm	mm	950
Adjustable top electrode strode	mm	0-60
Maximum working pressure	N	12265
Air pressure	MPa	0.5
Cooling water consumption	L/h	160
Weight of welder	kg	180
External dimension (length × width × height)	mm	11205201480
Innstallation diameter(lengthwidthdiameter)	mm	740280O.D 14

2. Seam Welding Machine

Description	Unit	Data
Rated capacity	KVA	200
Rated voltage	V	380
Rated current	A	526
Frequency	HZ	50
Continuous capacity	KVA	140
Continuous current	A	370
Duty cycle	%	50
Secondary floating voltage	V	6.8~7.6
Secondary voltage regulation		2
Welding speed	m/min	0~7
Thickness of maximum weldment	mm	2+2
Rated welding thickness of weldment	mm	1.5+1.5
Extension elongation of electrode arm	mm	1100
Adjustable top electrode strode	mm	135
Maximum working pressure	N	7500
Compressed air consumption	m3/h	2.5
Air pressure	MPa	0.5
Cooling water consumption	L/h	1300
Motor power	KW	1.5
Weight of welder	kg	2200
External dimension (length × width × height)	mm	440014002200

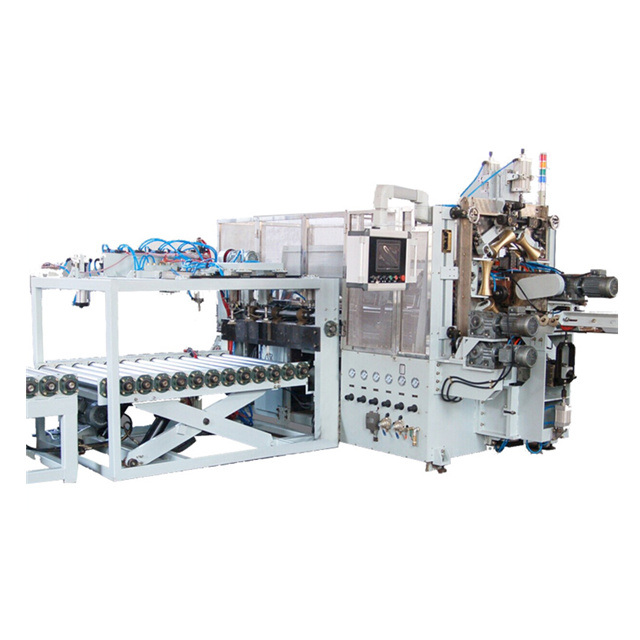

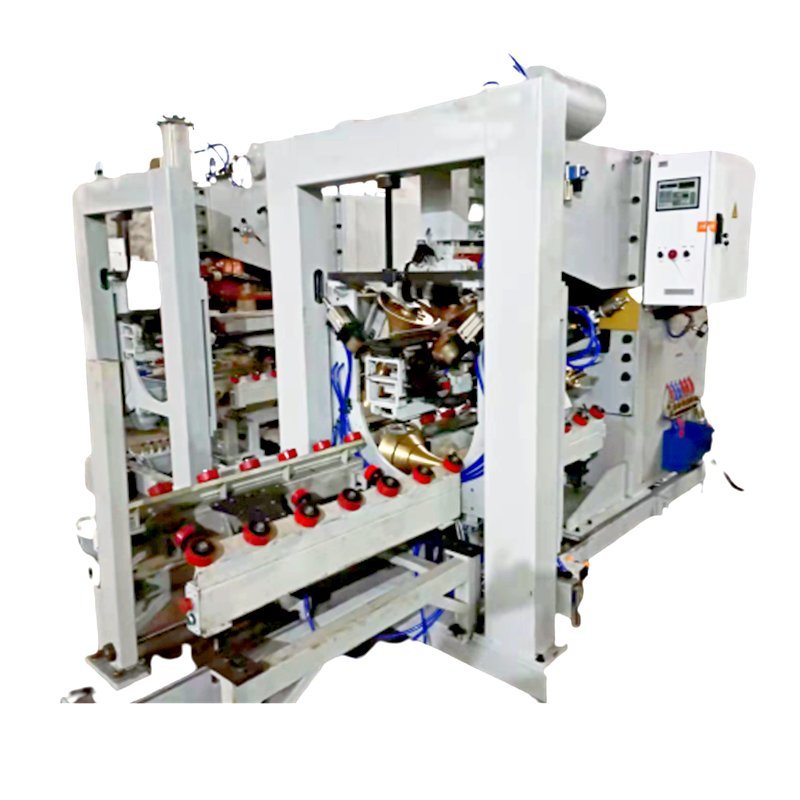

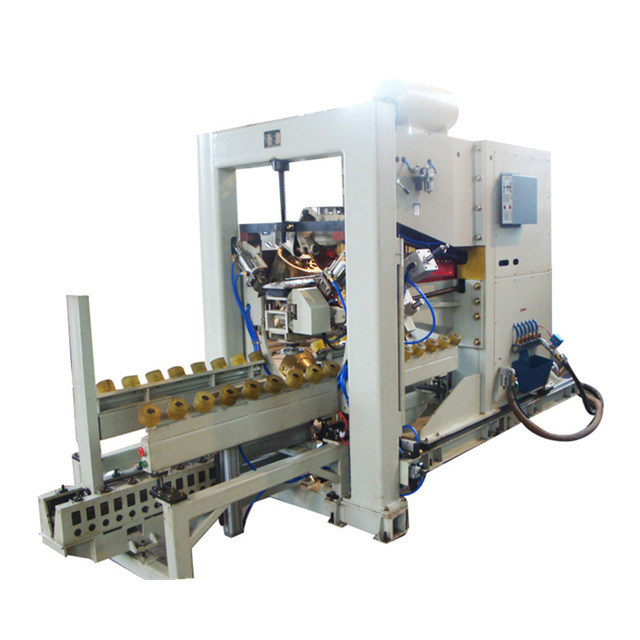

Option 3. Automatic sheet rolling and resistance seam welding - with automatic sheet loading/unloading device
Working efficiency: 360-420pcs per hour
Diameter range: 560/571mm, customized accept
Length range: 900-1025mm
Material thickness range: 0.7-1.2mm
Digital panel control, easy for operation.
Automatic electrode adjustment
Automatically loading/unloading the workpiece, automatically rolling and seam welding.
